*POWERPACK UNIT AS LITE 6 AS 850 6070298022 DEPOSIT EUR 600*

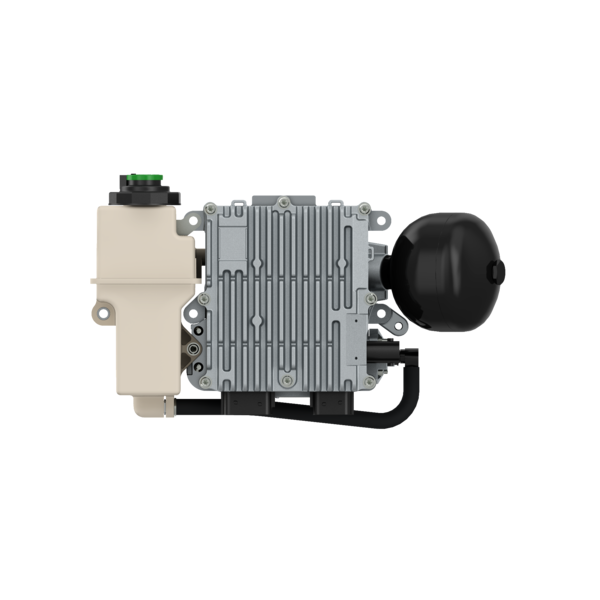

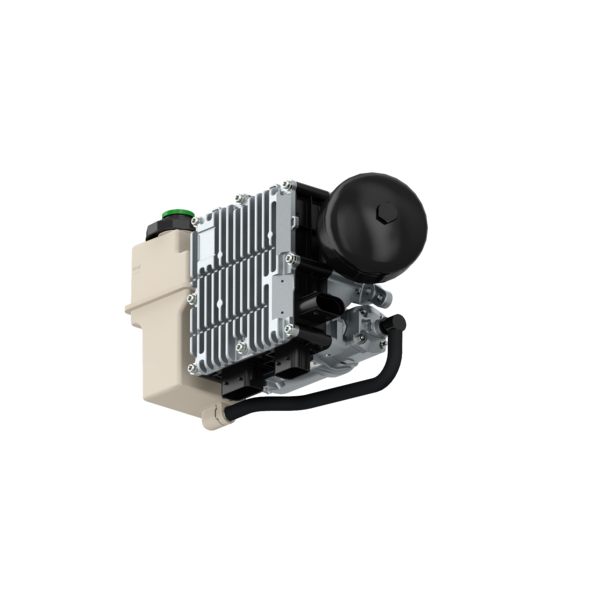

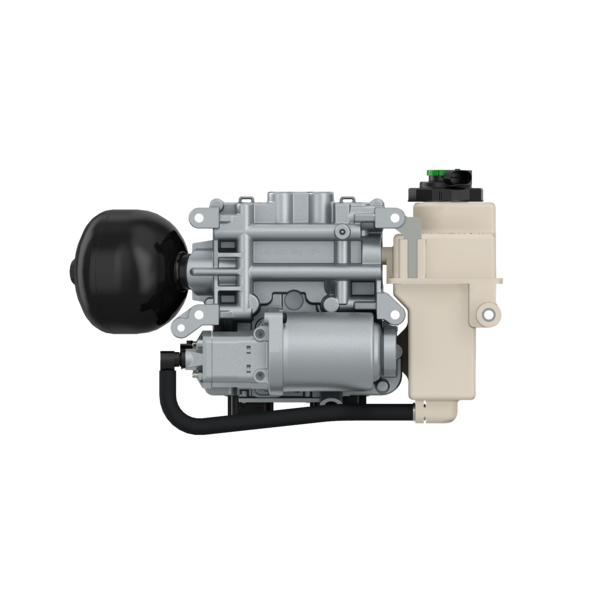

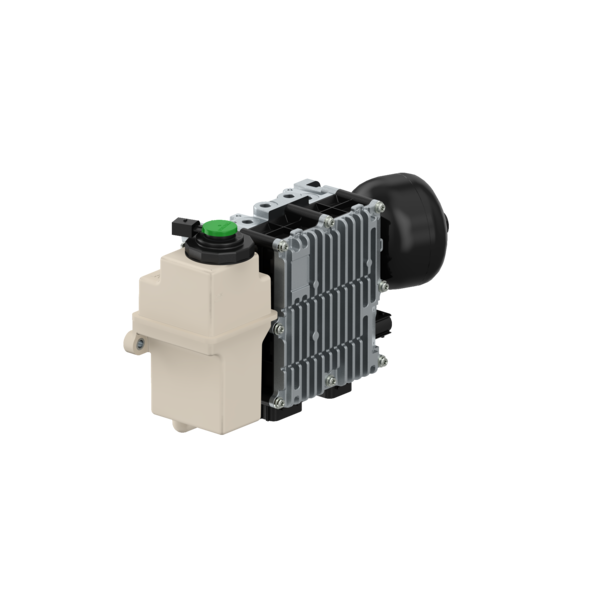

WABCO GEARBOX ACTUATOR – CONTROL UNIT – POWERPACK UNIT 477001030R

Price is available only with your old unit in exchange. If you no longer have the old unit or it is damaged, you will have to pay its value.
Estimated old unit value: 660 Euro Netto price (ex works).

These units are delivered without software and without parameters written; the unit needs to be parameterized (system paratameters to be written) in an authorised workshop, entering the appropiate vehicle parameters. The customer assumes the responsibility to collaborate with a service in order to parameterize the purchased unit. The customer understands that seller will not perform any services related to the Product and acknowledges and confirms that the Customer is solely responsible to perform such services. In case that the workshop called by the customer cannot parameterize the unit for any reason, the customer cannot make a warranty claim and cannot return the gearbox control unit.

CROSS-REFERENCES:

ZF 6070301053
ZF 501331742
ZF 501333581
ZF 501333747
ZF 6070201011
0501333747 ZF
1786415
6070298002 ZF
1786415R
1789024
1789031
1789032
1803627
1825435
1826552
1826552R
1829680
1829680R
2005381
2005381R
21116741
21325977
42560250
42564478
4432020051
4770010300
4770010300
477001030RE

6070298002
6070298004
6070298022 ZF
81326906028
81326906052
81326906054
81326906060

Technical Specifications:
• Distance between holes: 92.0 x 186.0 mm
• Max. operating pressure: 100.0 bar
• Mounting: 4x Ø 8.4 mm
• Oil inlet: Pentosin CHF11S
• Port thread 21: M12 x 1.0
• Port thread 22: M12 x 1.0
• Port thread 23: M12 x 1.0
• Port thread 24: M12 x 1.0
• Port thread 25: M12 x 1.0
• Temperature range: -32°C to +120°C
• Voltage: 24 V
• Calculated Volume: 27.9923 dm³
• Size: 495 x 290 x 195 mm x mm x mm
• UPC: 193133315865
• Weight: 10.5 kg
