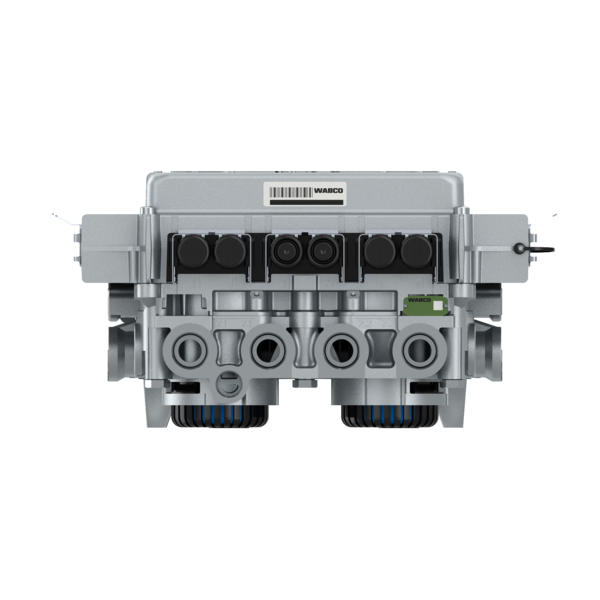

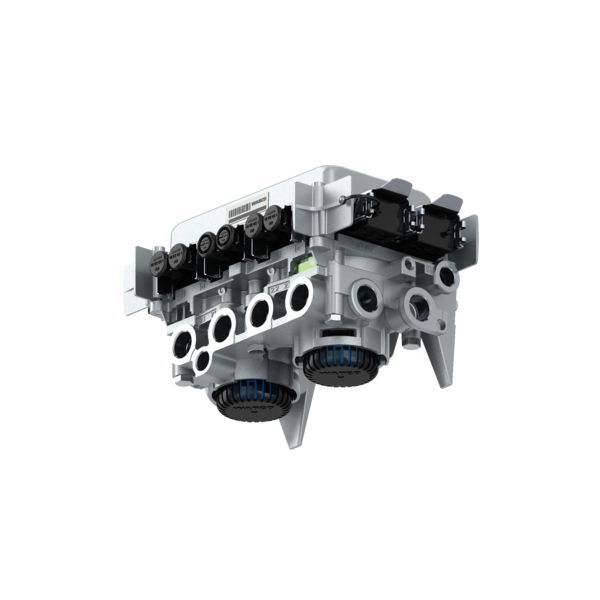

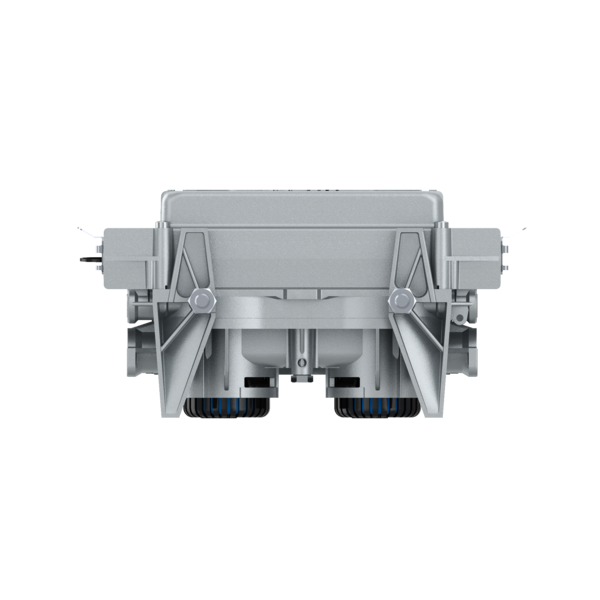

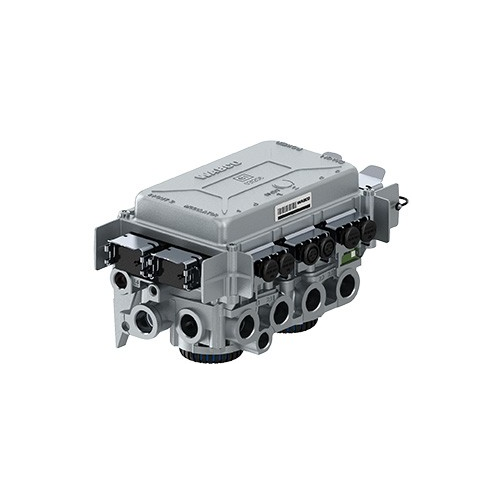

WABCO EBS TRAILER MODULATOR, D-GEN 480102014R

WABCO CROSS REFERENCES: 480102014R, 480102014, 4801020140, 4801020000, 4801020147, 4801020100 .

Price is available only with your old unit in exchange. If you no longer have the old unit or it is damaged, you will have to pay its value.
Estimated old unit value: 210 Euro Netto price (ex works).

Technical Specification:
Distance between bolts: 5.31 in
Electrical Connection: Bat/ILS/ECAS/ELM/24N/Telematik
Max. operating pressure: 123.3 psi
Port thread 1: M22 x 1.5
Port thread 2: 1M22 x 1.5
Port thread 22: M22 x 1.5
Port thread 32: Integrated Silencer
Port thread 4: M16 x 1.5
Port thread 5: M16 x 1.5
Protection Class: IP 66
System: 4S/3M
Temperature range: -40?F to +149?F
Type: Premium
Version: TEBS D
Voltage: 24 V
Mounting: 2x M10
Calculated Volume (dm?): 9.12
GTIN: 04057875228639
Packaging size (mm x mm x mm): 360 x 210 x 192
Packaging volume (dm?): 14.52
Size (mm x mm x mm): 300 x 190 x 160
UPC: 193133316855
Weight (kg): 4.4
Weight (lb): 9.7
OE Replaces : SCHMITZ CARGOBULL1182102
