VALVE ECAS ECAS3 – WABCO
4728800650 102140400 NEOPLAN 11016530 1021.404.00 11016533 1021404000 SOLARIS 1021402001 1021404100 1518108 DAF 1934992 SCANIA 20356554 VOLVO 4729000500 =4728800650 I SET
RELAY VALVE WABCO ZAMJ. With 9730030130
9730030000 1519327 DAF 0014298344 EVOBUS A0014298344 EVOBUS AL200751 JOHN DEERE 001 429 83 44 MERCEDES A0014298344 MERCEDES 5430110971 RENAULT 5430110971

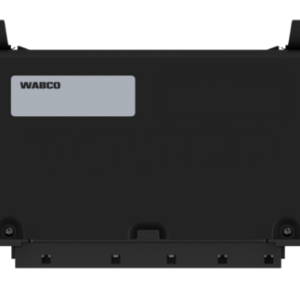

ELECTRONICS EBS MERCEDES ACTROS MP4, AROCS – WABCO
WABCO Code: 4461302130
Suitable for MERCEDES-BENZ? AROCS, ACTROS MP4
* Calculated Volume 0.88128 dm?
* Protection class: IP 30 (IEC 529)
* Temperature range: -40?C to +75?C
* Voltage: 24 V
* Size: 180 x 136 x 36 mm x mm x mm
* UPC: 193133403975
* Weight: 0.386 kg
WABCO MODULATOR 4801020660 PREMIUM, 24V, EBS E-GEN. 2S/2M/4S/3M (SA PEM 4615130200)
Brand: WABCO Original
Part type: Premium original quality
Technical Specification: OE specification
Distance between bolts: 70.0 mm
Max. operating pressure: 8.5 bar
Port thread 1: 15 x 1.5 / 8 x 1
Port thread 11: 12 x 1.5 / 8 x 1
Port thread 21: 12 x 1.5
Port thread 22: 12 x 1.5
Port thread 23: 8 x 1
Port thread 24: 8 x 1
Port thread 3: 2 Integrated Silencer
Port thread 4: 8 x 1
Port thread 42: 8 x 1
Port thread 5: 8 x 1
Protection Class: IP 6K9K
System: 4S/3M
Temperature range: -40°C to +65°C
Type: Premium
Version: TEBS E with PEM
Voltage: 24 V
mounting: 2x M12
Calculated Volume (dm³): 36.2579
GTIN: 04057875228790
Size (mm x mm x mm): 224 x 259 x 198
UPC: 193133317197
Weight (kg): 6.2
Weight (lb): 13.67
CROSS REFERENCES:
DOLL: 7118837
FELDBINDER: 1066116
GOLDHOFER: 170974
KRONE: 515024036
KÄSSBOHRER: 21150110185
LANGENDORF: 1268388
Meiller: 79838470182396
OTOKAR: AIF2062
SCANIA: 1935126
SCHMITZ CARGOBULL: 1042743 , 1115125
SCHWARZMÜLLER: 83603
Tirsan: 21150110185
VAN HOOL: 11074055
WABCO: 4801020600, 4801020610, 4801020620, 4801020640, 4801020650, 4801020840
*MAN TGL/TGM AIR COMPRESSOR – WABCO***DEPOSIT EUR 175
912116000R 51541007071 MAN 51541009071 MAN 8840157760 9121160000 K184471N50
VALVE ECAS 3 – WABCO
4728801060 0527486 DAF 1249535 1505296 1505296 41030745 41030745 IVECO 42578034 4728801060 4729001010=4728801060 I set 4728809282 i 4728809282 4729001040 4729001040=4728801060 I
EBS MODULATOR Irizar/Solaris – WABCO
• WABCO 4801062010
• Calculated Volume (dm³): 5.6587
• Distance between holes: 3.94 in
• Max. operating pressure: 188.5 psi
• Mounting: 2x M12 x 1.5
• Port thread 11: M22 x 1.5 JED - 388-4
• Port thread 12: M22 x 1.5 JED - 388-4
• Port thread 21: M22 x 1.5 JED - 388-4
• Port thread 22: M22 x 1.5 JED - 388-4
• Port thread 3: Integrated Silencer
• Port thread 4: M16 x 1.5 JED - 388-4
• Protection class: IP 6K6K / IP 6K9K
• Rated current: 7 A
• Temperature range: -40°C to +80°C
• Voltage: 24 V
• Size (mm x mm x mm): 227 x 164 x 152 mm
• UPC: 193133407508
• Weight: 3.093 kg
COMPRESSOR WABCO VOLVO 20701801
Price is available only with your old unit in exchange. If you no longer have the old unit or it is damaged, you will have to pay its value.
Estimated old unit value: 175 Euro Netto price (ex works).
*MODULATOR EBS DAF CF85 – WABCO – DEPOSIT EUR 175
480104002R 4801040020 1607919 DAF 595307M010 4801040010 1607917 480104002R
AXLE MODULATOR DAF XF – WABCO
4801066080 2047122
EBS MODULATOR IVECO STRALIS 16R – WABCO
4801040060 41211414 480104006R
BRAKE PEDAL DAF XF105, OTOKAR, SOLARIS – WABCO
4800030040 1677510 DAF 12F1508183AA OTOKAR 1102408021 SOLARIS
